What is a Gas chamber furnace? heating furnace specifications, models, and parameters

2025-5-27

Gas chamber furnaceIt is a forging heating device using gas as fuel.,the principle is simple.Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.。

1、Brief introduction of Gas chamber furnace

Gas chamber furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.。

Gas chamber furnace

Gas chamber furnace

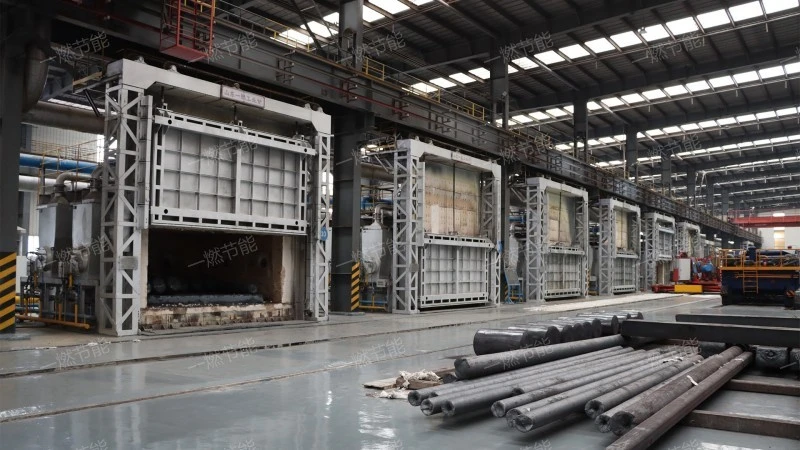

2、Gas chamber furnace customer scene picture

Excellent materials, atmospheric design, fine workmanship, impeccable, trustworthy, all-round high-definition shooting, which is helpful for customers' reference.。

Gas chamber furnace

Gas chamber furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

3、Gas chamber furnace function

Gas chamber furnaceit has the functions of Casting heating, Casting heating, quench, hardening and tempering and temper,It has the functions of Improve production efficiency, Metal tempering, Metal forging heating, Energy conservation and environmental protection and Metal melting and casting,widely used inpetroleum,chemical industry,metallurgy,Household necessities,machinery and other industries,The structure is novel, special, advanced, reasonable and scientific.,Structure consists of ventilation system, Radiation chamber, ventilation system, furnace chamber, recovery of waste heat and so on,the advantage is It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.。

Gas chamber furnace

Gas chamber furnace

4、Gas chamber furnace HD picture real shot

The beauty of Gas chamber furnace comes from the detail design.。

Gas chamber furnace

Gas chamber furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

5、Gas chamber furnace structure

The Gas chamber furnace structure is introduced as follows:

  1. combustor
  2. The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

  3. ventilation system
  4. Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

  5. furnace chamber
  6. A space for holding metallic materials for heating.

  7. Radiation chamber
  8. The heat load of the main place for Gas chamber furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

  9. convection chamber
  10. The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

Gas chamber furnace

Gas chamber furnace

Gas chamber furnaceis a kind of high quality and low price Gas chamber furnace,Mainly used forMetal tempering,Metal melting and casting,Improve production efficiency,Metal forging heating andMetal heat treatment。
