Introduction to Through type forging furnace, Forging furnace advantages, characteristics and principles

Through type forging furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.。

1、Brief introduction of Through type forging furnace

Through type forging furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，it is mainly composed of ventilation system, convection chamber, combustor, furnace chamber and Radiation chamber，This productThe overall structural design is simple and novel.，it has the characteristics of energy-efficient, Easy to maintain, energy saving and environmental protection, Strong adaptability and Stable and reliable。

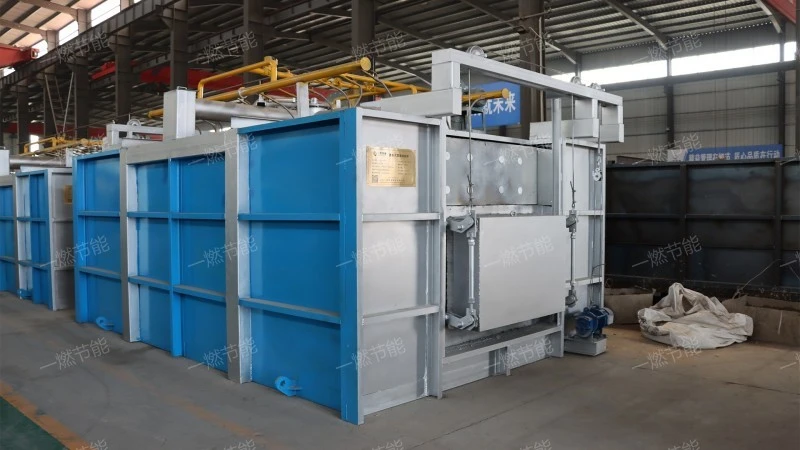

Through type forging furnace

2、Introduction of Through type forging furnace characteristics

Through type forging furnace has the following characteristics

1. Easy to maintain

The structural design of the Through type forging furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

2. Stable and reliable

The Through type forging furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

3. Strong adaptability

The Through type forging furnace is suitable for forging and heating of various metal materials and has a wide range of applications.

4. Easy to maintain

The structural design of the Through type forging furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

5. Strong adaptability

The Through type forging furnace can be used for forging and heating of bar, round steel, square steel, steel plate and other metal materials, and has a wide range of applications.

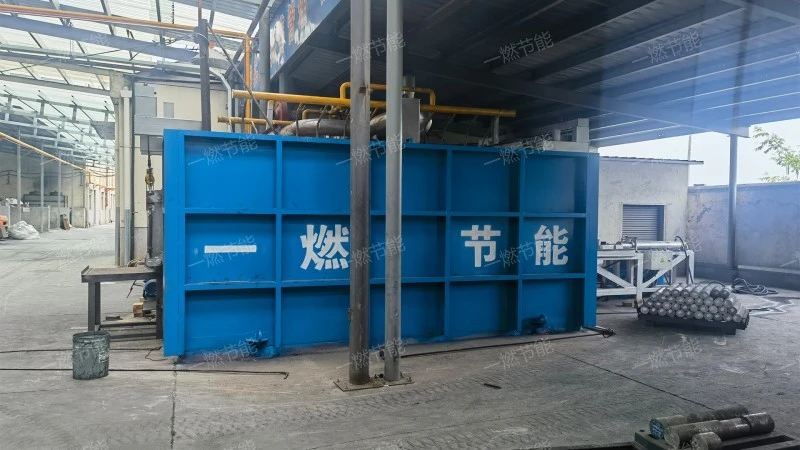

Through type forging furnace

3、Introduction of advantages of Through type forging furnace

Through type forging furnaces have the following advantages.

1. Uniform heating

The Through type forging furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

2. Multiple fuel options

Although the Through type forging furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

3. easy to operate

The operation interface of the Through type forging furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

4. Extend the service life of equipment

The Through type forging furnace adopts advanced combustion technology and materials, which has a long service life and low maintenance cost.

5. Wide application range

The Through type forging furnace is suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.

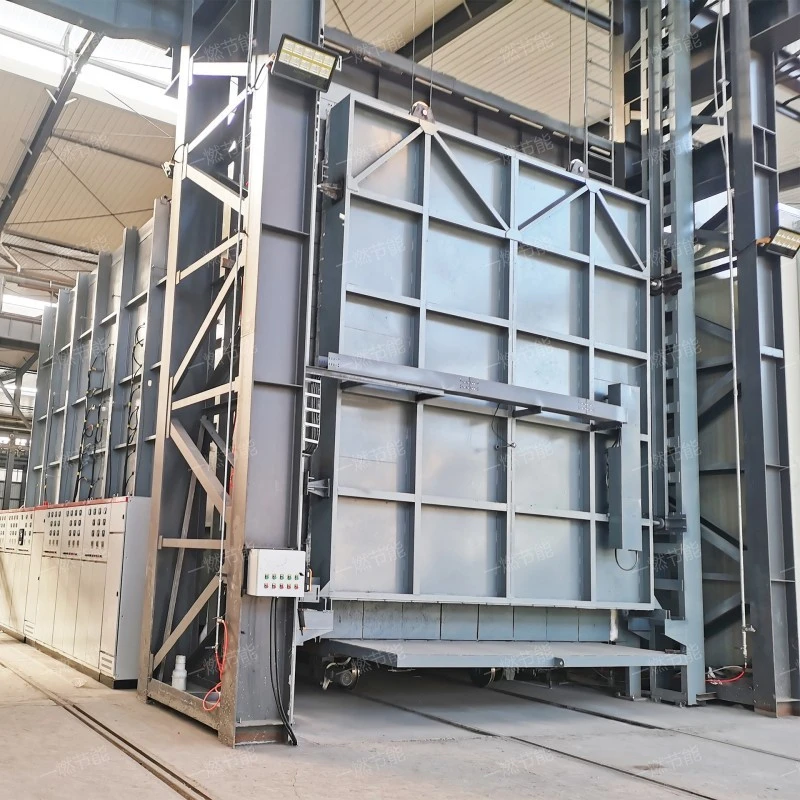

Through type forging furnace

4、Structural advantages of Through type forging furnace

The Through type forging furnace has the following structure

1. Radiation chamber

The heat load of the main place for Through type forging furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

2. Waste heat recovery system

Recover the waste heat in the exhaust gas of heating furnace to improve the energy utilization efficiency.

3. Radiation chamber

The heat load of the main place for Through type forging furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

4. furnace chamber

A space for holding metallic materials for heating.

5. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

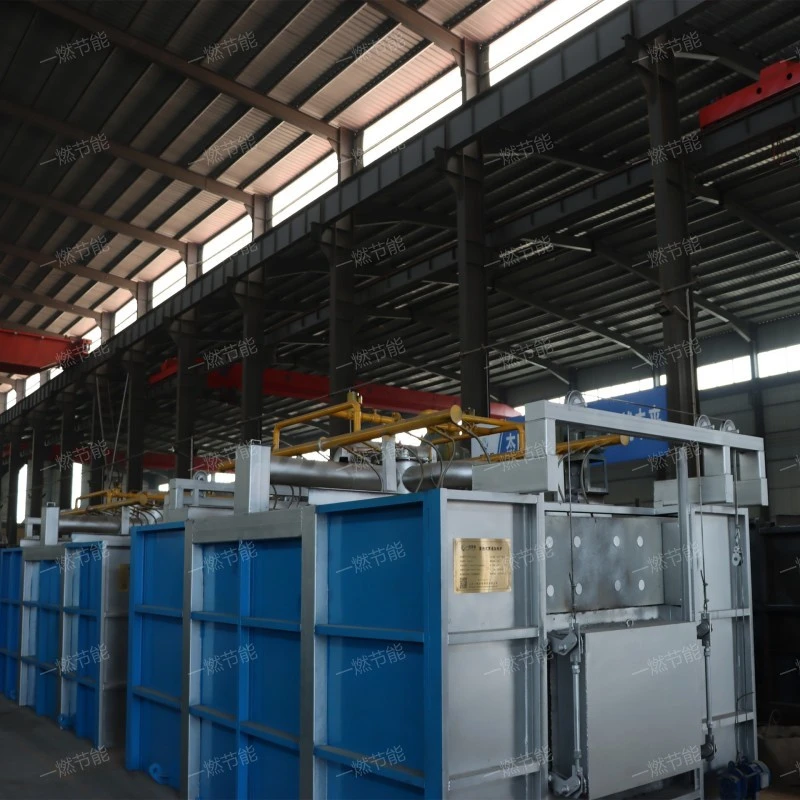

Through type forging furnace

5、Through type forging furnace use

The purpose of Through type forging furnace is introduced as follows:

1. Metal heat treatment

In addition to forging heating, Through type forging furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

2. Metal melting and casting

Although it is mainly used for forging heating, some types of Through type forging furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

3. Metal forging heating

The Through type forging furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

4. Metal heat treatment

In addition to forging heating, Through type forging furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

5. Metal forging heating

The Through type forging furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

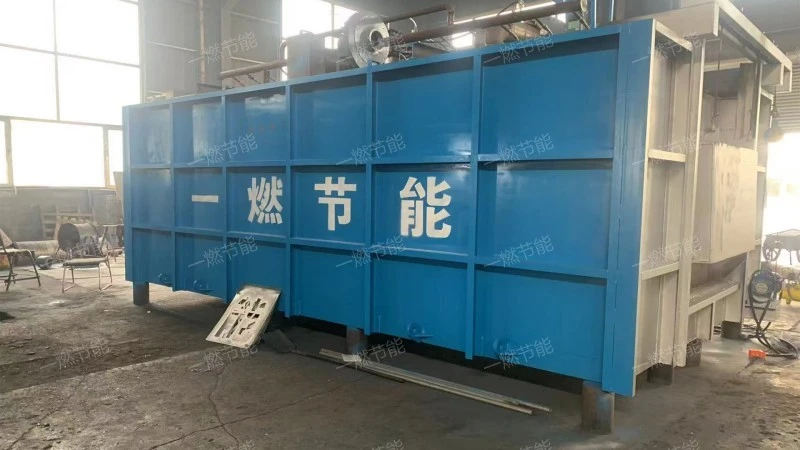

Through type forging furnace

6、Through type forging furnace price consultation

The Through type forging furnace price is introduced as follows:

1. sales mode

If there is no middleman to earn the difference, then the Through type forging furnace price will naturally decrease. One-combustion energy saving adopts the business model of "self-production and self-marketing" to sell products, thus realizing "one-on-one" sales, so the comprehensive price of our products is relatively high.

2. Model size

Different product models will also affect the price changes. Different specifications and models will lead to different product prices.

3. After-sales service level

Service factors always affect the sales price of products, and high-quality service will make customers have greater satisfaction and recognition. The service factors mainly include pre-sales service, in-sales service and after-sales service. For each stage of service, our company takes the price factor into account and makes a reasonable judgment between service and price, so that the Through type forging furnace price and service can meet the actual needs of customers.

4. company strength

The nature of the manufacturer can also greatly affect the price of the Through type forging furnace. General manufacturers are divided into direct sellers, agents and middlemen. If they are direct selling manufacturers, there are not too many intermediate links, and their sales prices are low.

5. Brand strength

At present, there are various brands of Through type forging furnace in Shandong(Province). The performance, quality and after-sales of products under different brands are different, and the prices of Through type forging furnace are different.

Through type forging furnace

Through type forging furnacemultifunctional, with functions such as normalizing, hardening and tempering, anneal, temper and quench，It is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.。
