Introduction to Circular trolley furnace, forging furnace specifications, model parameters

Circular trolley furnaceIt is a forging heating device using gas as fuel.，the advantage is Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、Adopting advanced combustion technology and control system can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.，it can be used in material, machinery, pharmacy, heat treatment, aerospace and other industries，multifunctional, with functions such as heat treatment, quench, normalizing, Casting heating and temper，is a common Circular trolley furnace。

1、Brief introduction of Circular trolley furnace

Circular trolley furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，Simple structure and advanced technology.，it is usually composed of recovery of waste heat, combustor, Radiation chamber, ventilation system and ventilation system，support customization。

Circular trolley furnace

2、Circular trolley furnace performance advantage

Circular trolley furnaces have the following advantages.

1. Rapid temperature rise

The Circular trolley furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

2. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

3. Improve product quality

Because the Circular trolley furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

4. Reduce operating costs

The efficient combustion and waste heat recovery system of the Circular trolley furnace can significantly reduce energy consumption, thus reducing operating costs.

5. easy to operate

The operation interface of the Circular trolley furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

Circular trolley furnace

3、Circular trolley furnace application

Circular trolley furnaces have the following purposes.

1. Metal tempering

By properly heating and cooling the metal material, the Circular trolley furnace can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

2. Energy conservation and environmental protection

The Circular trolley furnace uses clean energy as fuel, which has lower emissions and higher energy efficiency than traditional coal-fired or oil-fired stoves. This is helpful to reduce environmental pollution and realize green production.

3. Metal heat treatment

In addition to forging heating, Circular trolley furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

4. Metal heat treatment

In addition to forging heating, Circular trolley furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

5. Metal melting and casting

Although it is mainly used for forging heating, some types of Circular trolley furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

Circular trolley furnace

4、Circular trolley furnace function

Circular trolley furnacemultifunctional, with functions such as anneal, hardening and tempering, Forging heating, temper and normalizing，It is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，The high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，it has been widely used in shipping, electron, light industry, electron, Machinery manufacturing and other industries，It is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.。

Circular trolley furnace

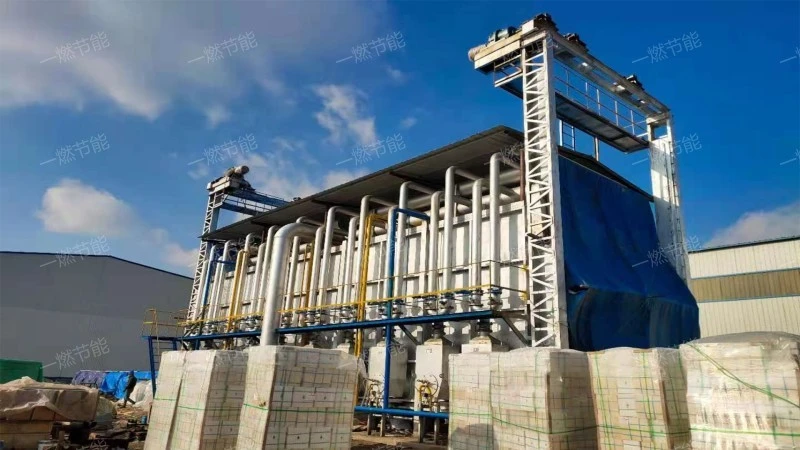

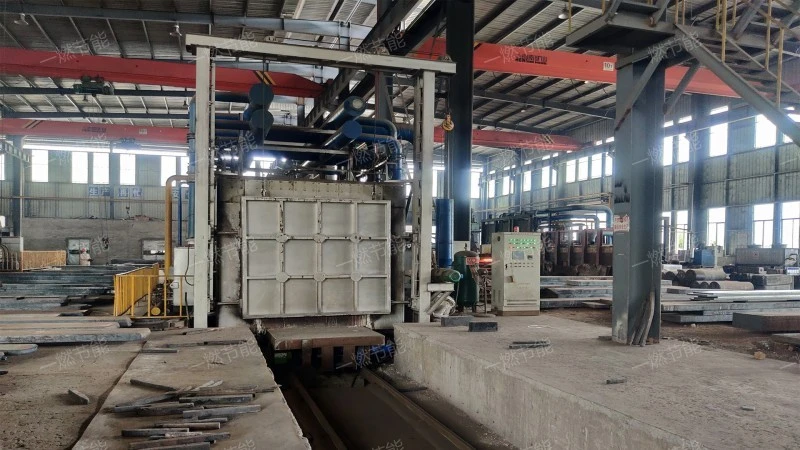

5、Circular trolley furnace picture

Circular trolley furnace styles and designs are diverse, specifications and models can be customized according to customer needs, providing high-definition pictures for new and old customers' reference.。

Circular trolley furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

6、Circular trolley furnace structure composition

The Circular trolley furnace has the following structure

1. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

2. Radiation chamber

The heat load of the main place for Circular trolley furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

3. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

4. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

5. Radiation chamber

The heat load of the main place for Circular trolley furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

Circular trolley furnace

Circular trolley furnaceit is widely used in war industry, petroleum, light industry, Machinery manufacturing and automobile，the advantage is Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.，It has a wide range of uses, and is often used inEnergy conservation and environmental protection,Metal forging heating,Metal heat treatment,Metal melting and casting,Metal tempering and so on。
