Introduction to Deep well industrial annealing furnace and forging furnace structure principle

Deep well industrial annealing furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，be loved by our customers.。

1、Brief introduction of Deep well industrial annealing furnace

Deep well industrial annealing furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，features include Stable and reliable, Easy to control, energy-efficient, Strong adaptability and energy saving and environmental protection，is a kind of Deep well industrial annealing furnace manufactured by One-combustion energy saving。

Deep well industrial annealing furnace

2、Deep well industrial annealing furnace structure composition

The Deep well industrial annealing furnace has the following structure

1. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

2. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

3. Radiation chamber

The heat load of the main place for Deep well industrial annealing furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

4. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

5. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

Deep well industrial annealing furnace

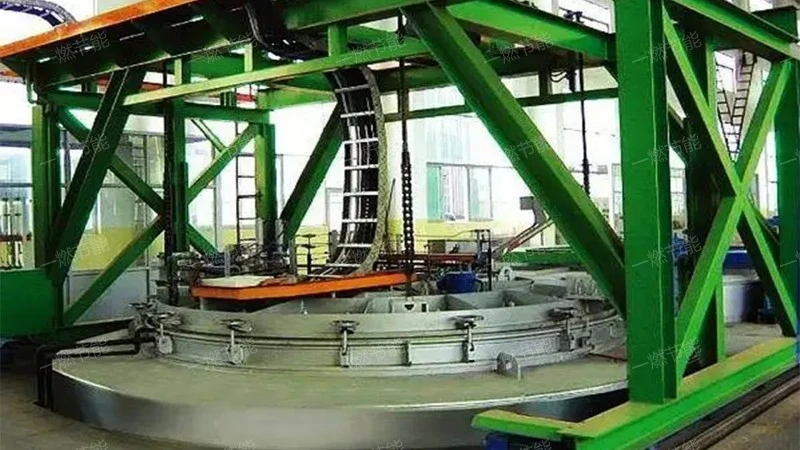

3、Deep well industrial annealing furnace field real shot

One-combustion energy saving Deep well industrial annealing furnace, product manufacturer, product features, is the ideal choice for new and old customers.。

Deep well industrial annealing furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

4、Introduction of Deep well industrial annealing furnace characteristics

Deep well industrial annealing furnace has the following characteristics

1. Easy to maintain

The structural design of the Deep well industrial annealing furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

2. energy saving and environmental protection

As a clean energy source, gas produces less waste gas and waste smoke after combustion, which is beneficial to environmental protection. At the same time, some Deep well industrial annealing furnaces are also equipped with waste heat recovery system, which further improves the energy utilization efficiency.

3. Efficient heating

The Deep well industrial annealing furnace can heat the metal material to the required temperature in a short time and improve the production efficiency.

4. Easy to control

The combustion system and ventilation system of the Deep well industrial annealing furnace can be adjusted as required to accurately control the temperature and atmosphere in the furnace and meet the heating requirements of different metal materials.

5. Stable and reliable

The Deep well industrial annealing furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

Deep well industrial annealing furnace

5、Introduction of advantages of Deep well industrial annealing furnace

Deep well industrial annealing furnaces have the following advantages.

1. Extend the service life of equipment

The Deep well industrial annealing furnace adopts advanced combustion technology and materials, which has a long service life and low maintenance cost.

2. Intelligent control

The Deep well industrial annealing furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

3. Uniform heating

The Deep well industrial annealing furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

4. Improve product quality

Because the Deep well industrial annealing furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

5. Wide application range

The Deep well industrial annealing furnace is suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.

Deep well industrial annealing furnace

6、Advantages of Deep well industrial annealing furnace principle

Deep well industrial annealing furnaceThe high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，can be customized according to user's needs.。

Deep well industrial annealing furnace

Deep well industrial annealing furnaceMainly used forMetal forging heating,Energy conservation and environmental protection,Metal heat treatment,Metal tempering andMetal tempering，It is a product series that integrates Metal melting and casting, Metal forging heating, Improve production efficiency, Metal heat treatment and Energy conservation and environmental protection。
