Introduction to Continuous heat treatment furnace and heating furnace structure principle

Continuous heat treatment furnaceIt is a forging heating device using gas as fuel.，the main features are Easy to maintain, Strong adaptability, Easy to control, energy saving and environmental protection and energy-efficient，is carefully developed by One-combustion energy saving combined with advanced technology。The following is to introduce the Continuous heat treatment furnace:

1、Brief introduction of Continuous heat treatment furnace

Continuous heat treatment furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，Widely used in Metal melting and casting, Metal heat treatment, Metal heat treatment, Metal forging heating and Improve production efficiency，it has the functions of Forging heating, Casting heating, heat treatment, anneal and quench，features include Strong adaptability, Easy to maintain, Easy to control, Stable and reliable and energy saving and environmental protection，is a popular Continuous heat treatment furnace。

Continuous heat treatment furnace

2、Introduction of Continuous heat treatment furnace characteristics

Continuous heat treatment furnace has the following characteristics

1. Easy to maintain

The structural design of the Continuous heat treatment furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

2. Strong adaptability

The Continuous heat treatment furnace can be used for forging and heating of bar, round steel, square steel, steel plate and other metal materials, and has a wide range of applications.

3. Easy to control

The combustion system and ventilation system of the Continuous heat treatment furnace can be adjusted as required to accurately control the temperature and atmosphere in the furnace and meet the heating requirements of different metal materials.

4. Strong adaptability

The Continuous heat treatment furnace is suitable for forging and heating of various metal materials and has a wide range of applications.

5. Easy to control

By adjusting the burner and ventilation system, the temperature and atmosphere in the furnace can be accurately controlled to meet the heating requirements of different metal materials.

Continuous heat treatment furnace

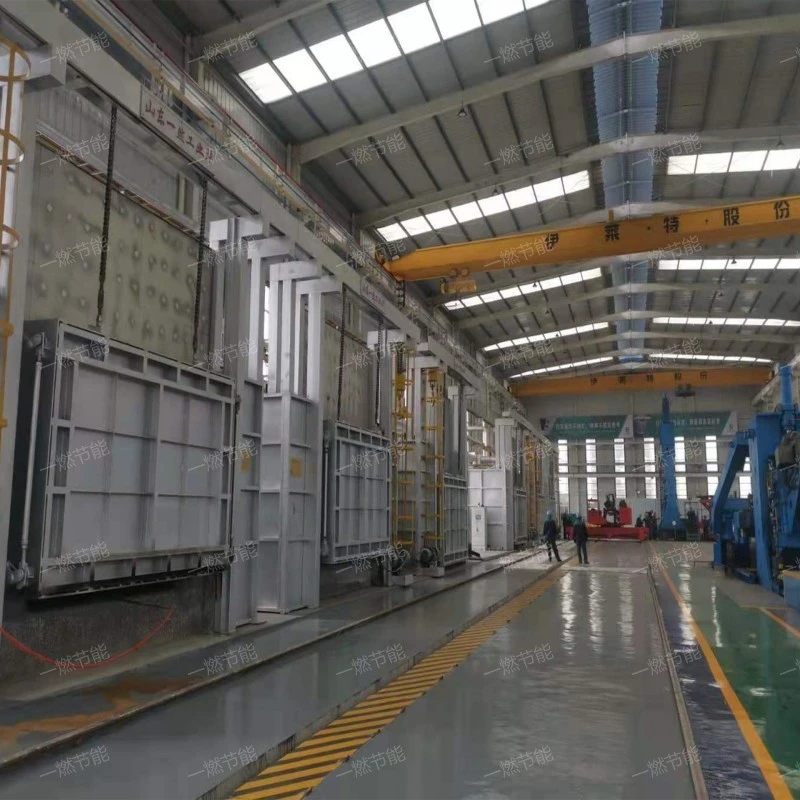

3、Continuous heat treatment furnace work site real shot

The following pictures can be used for reference by new and old customers.。

Continuous heat treatment furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

4、Continuous heat treatment furnace advantage

The advantages of Continuous heat treatment furnace are as follows:

1. Uniform heating

The Continuous heat treatment furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

2. Improve product quality

Because the Continuous heat treatment furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

3. Intelligent control

The Continuous heat treatment furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

4. Efficient combustion

The Continuous heat treatment furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

5. Reduce operating costs

The efficient combustion and waste heat recovery system of the Continuous heat treatment furnace can significantly reduce energy consumption, thus reducing operating costs.

Continuous heat treatment furnace

5、Working principle of Continuous heat treatment furnace

Continuous heat treatment furnaceThe high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，is a popular Continuous heat treatment furnace，it mainly includes recovery of waste heat, ventilation system, furnace chamber, convection chamber and ventilation system，is based on One-combustion energy saving is an advanced Continuous heat treatment furnace developed by our company in combination with the actual situation of the industry。

Continuous heat treatment furnace

6、Advantages of Continuous heat treatment furnace principle

Continuous heat treatment furnaceat work,The high-temperature flame and flue gas generated when fuel (natural gas) burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature.，the product looks beautiful.，widely used inmaterial,petroleum,aerospace,metallurgy,electron and other industries。

Continuous heat treatment furnace

Continuous heat treatment furnacemultifunctional, with functions such as hardening and tempering, Forging heating, quench, temper and anneal，the principle is simple.Heat of combustion based on fuel. Fuel gas (such as natural gas, liquefied petroleum gas, etc.) is mixed with combustion-supporting air through the burner and burned to produce high-temperature flame and flue gas. These high-temperature flames and smoke exchange heat with metal materials in the furnace, so that they gradually heat up to the temperature required for forging.。
