Introduction to Regenerative gas tube heating furnace, advantages, characteristics and principles of forging furnace

Regenerative gas tube heating furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，is an advanced Regenerative gas tube heating furnace developed by our company in combination with the actual situation of the industry。

1、Brief introduction of Regenerative gas tube heating furnace

Regenerative gas tube heating furnaceIt is a forging heating device using gas as fuel.，features include energy-efficient, Stable and reliable, energy saving and environmental protection, Easy to maintain and Easy to control。

Regenerative gas tube heating furnace

2、Structural advantages of Regenerative gas tube heating furnace

The Regenerative gas tube heating furnace has the following structure

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

3. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. Radiation chamber

The heat load of the main place for Regenerative gas tube heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

Regenerative gas tube heating furnace

3、Introduction of Regenerative gas tube heating furnace characteristics

Regenerative gas tube heating furnace has the following characteristics

1. Stable and reliable

The Regenerative gas tube heating furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

2. energy saving and environmental protection

Natural gas is a kind of clean energy, which produces less waste gas and waste smoke after combustion and has little environmental pollution. At the same time, through wall regenerative combustion technology, flue gas waste heat recovery system and other technical means, the Regenerative gas tube heating furnace further improves energy utilization efficiency and reduces energy consumption and emissions.

3. Efficient heating

The Regenerative gas tube heating furnace can heat the metal material to the required temperature in a short time and improve the production efficiency.

4. Easy to maintain

The structural design of the Regenerative gas tube heating furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

5. Easy to control

The combustion system and ventilation system of the Regenerative gas tube heating furnace can be adjusted as required to accurately control the temperature and atmosphere in the furnace and meet the heating requirements of different metal materials.

Regenerative gas tube heating furnace

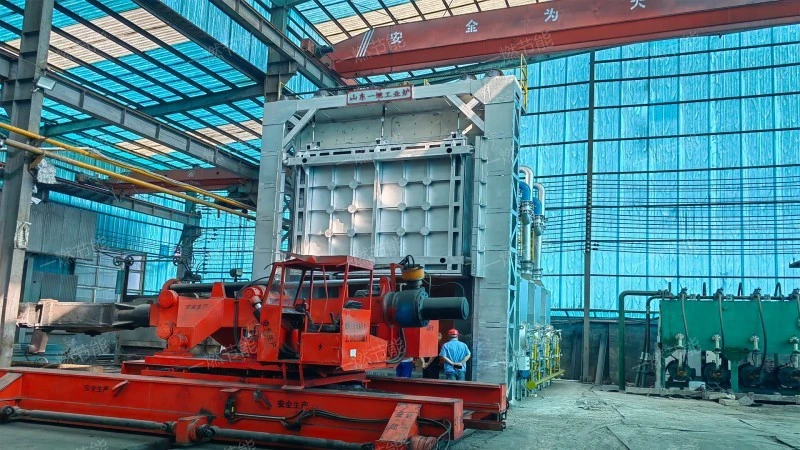

4、Regenerative gas tube heating furnace picture

Different specifications and models of high-definition pictures, so that everyone can see enough at once.。

Regenerative gas tube heating furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

5、Regenerative gas tube heating furnace performance advantage

Regenerative gas tube heating furnaces have the following advantages.

1. Improve product quality

Because the Regenerative gas tube heating furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

2. Efficient combustion

The Regenerative gas tube heating furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

3. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

4. Uniform heating

The Regenerative gas tube heating furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

5. Rapid temperature rise

The Regenerative gas tube heating furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

Regenerative gas tube heating furnace

Regenerative gas tube heating furnacethe product looks atmospheric.，It has a wide range of uses, and is often used inMetal melting and casting,Improve production efficiency,Metal forging heating,Energy conservation and environmental protection,Metal heat treatment and so on。
