What is a Natural gas through heating furnace? Introduction to the principle of heating furnace structure

Natural gas through heating furnaceIt is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.，the product looks atmospheric.，multifunctional, with functions such as hardening and tempering, anneal, hardening and tempering, quench and Casting heating，at runtime,The high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，the advantage is Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Adopting advanced combustion technology and control system can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.、Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.。

1、Brief introduction of Natural gas through heating furnace

Natural gas through heating furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.。

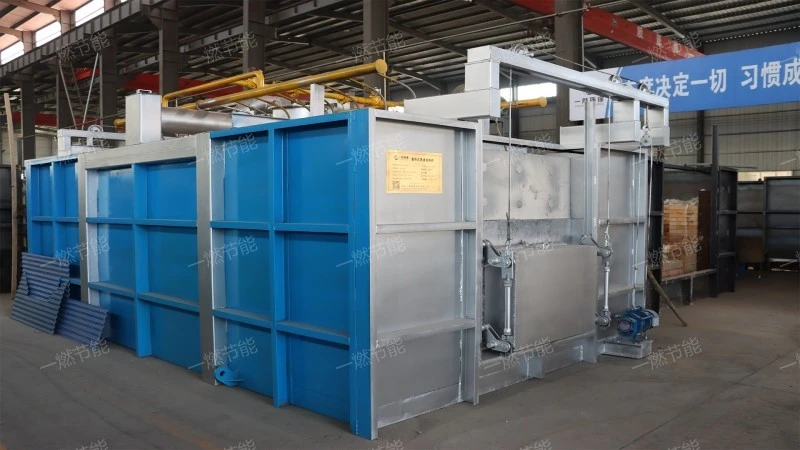

Natural gas through heating furnace

2、Functional advantages of Natural gas through heating furnace

Natural gas through heating furnaces have the following advantages.

1. Improve product quality

Because the Natural gas through heating furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

2. Efficient combustion

The Natural gas through heating furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

3. Reduce operating costs

The efficient combustion and waste heat recovery system of the Natural gas through heating furnace can significantly reduce energy consumption, thus reducing operating costs.

4. Wide application range

The Natural gas through heating furnace is suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.

5. Uniform heating

The Natural gas through heating furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

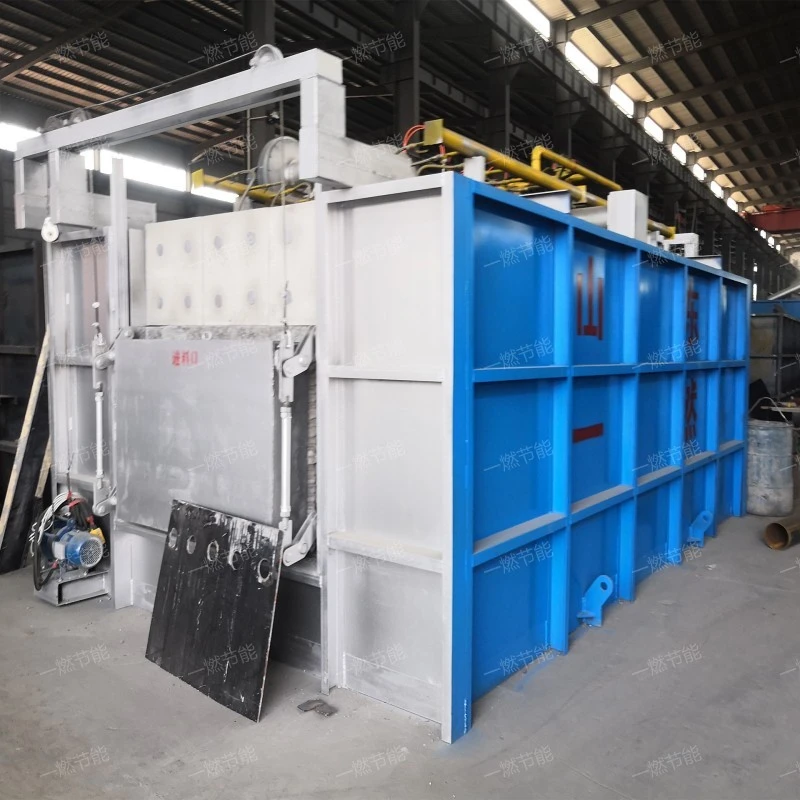

Natural gas through heating furnace

3、Natural gas through heating furnace video

One-combustion energy saving provides customers with on-site high-definition video, fully demonstrates the advantages of on-site Natural gas through heating furnacet operation, and helps customers to deeply understand the product production process and production site, and gain favorable comments and recognition from customers.。

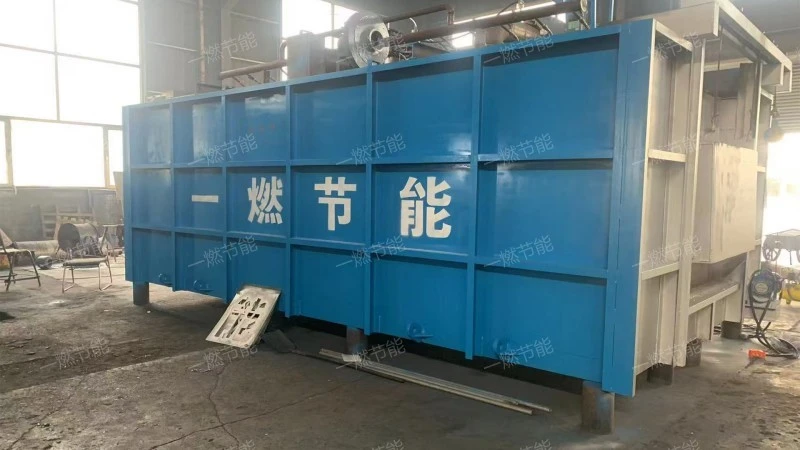

Natural gas through heating furnace

As you can see from the live video.，One-combustion energy saving It is mostly used in Metal tempering, Energy conservation and environmental protection, Improve production efficiency, Metal tempering, Metal heat treatment, Metal forging heating and so on。

4、Advantages of Natural gas through heating furnace principle

Natural gas through heating furnaceat work,The high-temperature flame and flue gas generated by burning gas (such as natural gas and liquefied petroleum gas) in the furnace are used as heat sources to heat metal materials.，can be customized according to user's needs.。

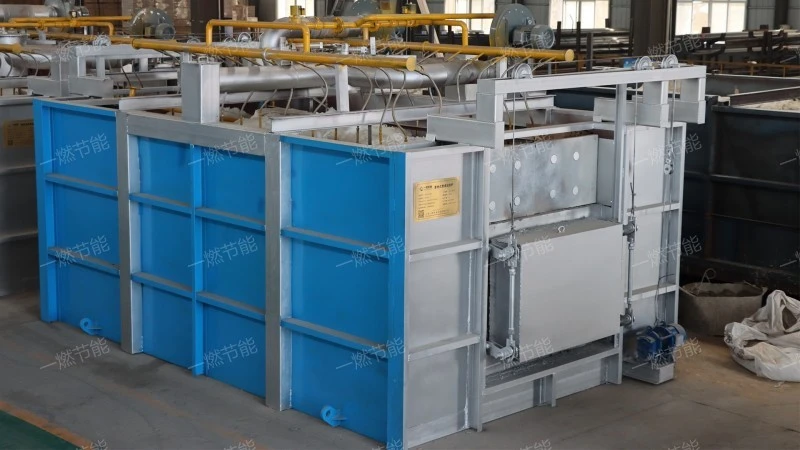

Natural gas through heating furnace

5、Natural gas through heating furnace structure

The Natural gas through heating furnace structure is introduced as follows:

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

3. furnace chamber

A space for holding metallic materials for heating.

4. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

5. furnace chamber

A space for holding metallic materials for heating.

Natural gas through heating furnace

Natural gas through heating furnacestructure mainly includes: ventilation system, convection chamber, Radiation chamber, recovery of waste heat, combustor and so on，This productThe structural design is more advanced and reasonable.，it has the functions of normalizing, temper, heat treatment, anneal and Forging heating。
