Introduction to End in end out step in/out furnace, heating furnace specifications, model parameters

End in end out step in/out furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，the advantage is Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.、Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.，widely used inbuilding materials,metallurgy,petroleum,electron,shipping and other industries。The following is to introduce the End in end out step in/out furnace:

1、Brief introduction of End in end out step in/out furnace

End in end out step in/out furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，the main features are energy saving and environmental protection, energy-efficient, Easy to maintain, Easy to control and Strong adaptability，in the course of work,The high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，is carefully developed by One-combustion energy saving combined with advanced technology。

End in end out step in/out furnace

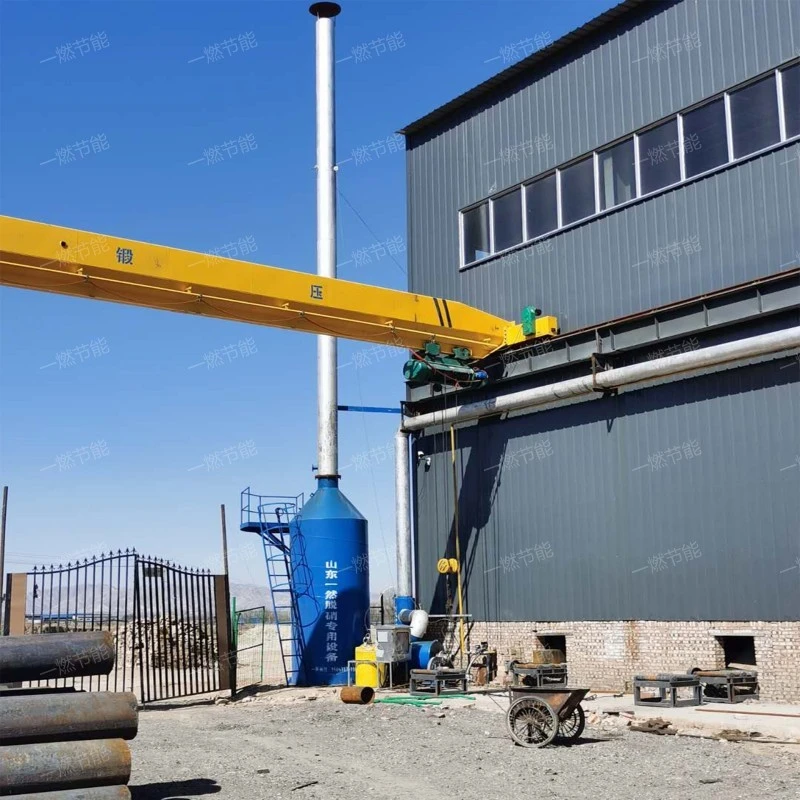

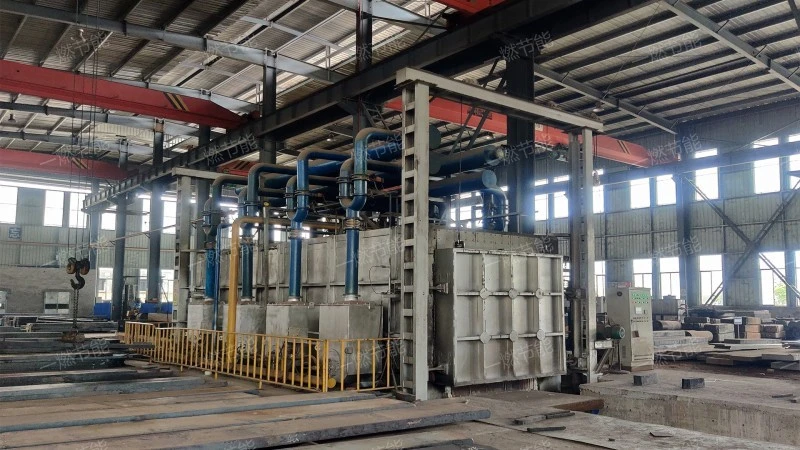

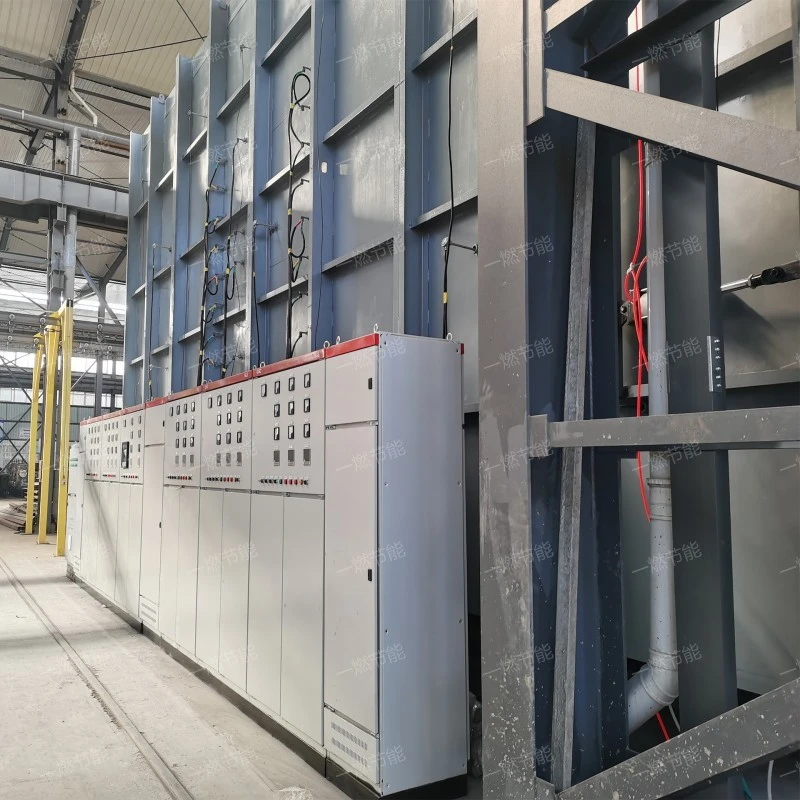

2、On-site real shot of End in end out step in/out furnace

Exquisite design, advanced technology and complete sizes and models are available for customers to choose at will.。

End in end out step in/out furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

3、End in end out step in/out furnace structure composition

The End in end out step in/out furnace has the following structure

1. Radiation chamber

The heat load of the main place for End in end out step in/out furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

2. Waste heat recovery system

Recover the waste heat in the exhaust gas of heating furnace to improve the energy utilization efficiency.

3. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

End in end out step in/out furnace

4、End in end out step in/out furnace performance advantage

End in end out step in/out furnaces have the following advantages.

1. Efficient combustion

The End in end out step in/out furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

2. Intelligent control

The End in end out step in/out furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

3. Improve product quality

Because the End in end out step in/out furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

4. easy to operate

The operation interface of the End in end out step in/out furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

5. Reduce operating costs

The efficient combustion and waste heat recovery system of the End in end out step in/out furnace can significantly reduce energy consumption, thus reducing operating costs.

End in end out step in/out furnace

5、Advantages of End in end out step in/out furnace principle

End in end out step in/out furnaceat runtime,The high-temperature flame and flue gas generated when fuel (natural gas) burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature.，widely used in Household necessities, heat treatment, pharmacy, chemical industry, heat treatment and other fields，be loved by our customers.。

End in end out step in/out furnace

6、Company discount

End in end out step in/out furnace is a new type of heating furnace introduced by One-combustion energy saving manufacturer, which has a wide range of applications, complete structural design and high working efficiency. It is an ideal equipment for automobile and other industries. Now consult One-combustion energy savingEnd in end out step in/out furnace, you can enjoy the discount, and there are many activities for you, such as full reduction and full reduction。

One-combustion energy saving

End in end out step in/out furnaceusually used in Machinery manufacturing, war industry, material, aerospace, surface treatment and other fields，multifunctional, with functions such as heat treatment, anneal, anneal, hardening and tempering and heat treatment，It can be used for Metal tempering, Metal forging heating, Metal melting and casting, Energy conservation and environmental protection, Improve production efficiency, Metal forging heating and so on。
